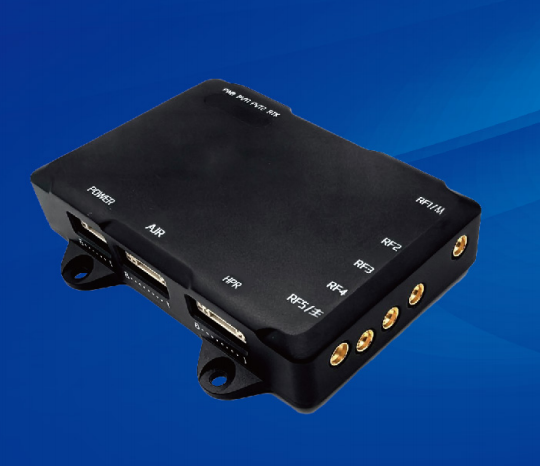

Ultra-Compact Anti-Jamming Receiver ZYL105

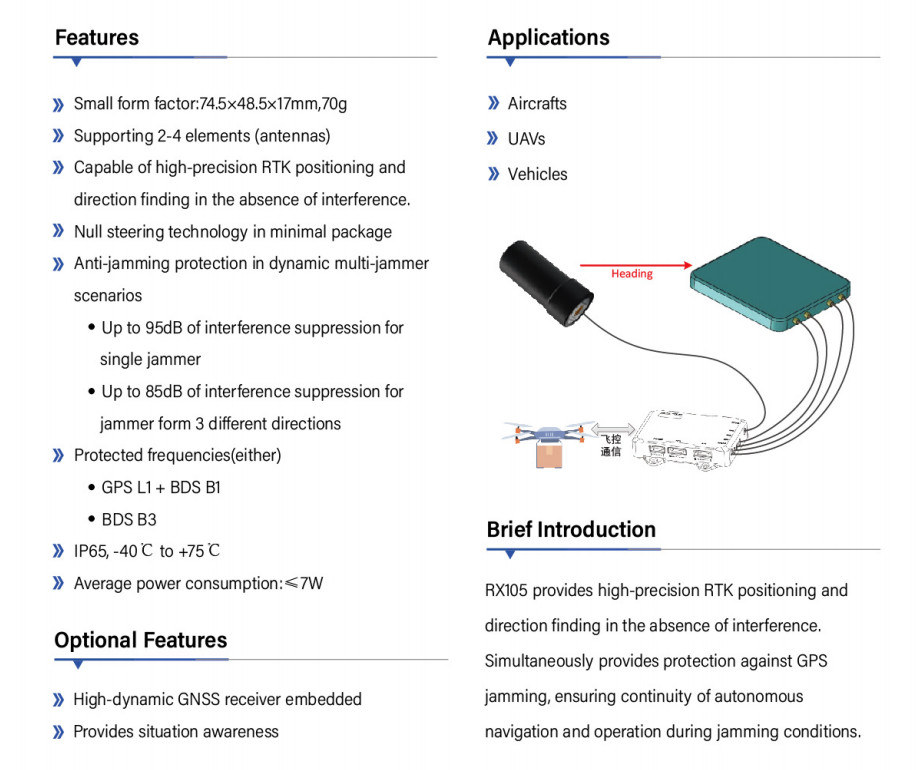

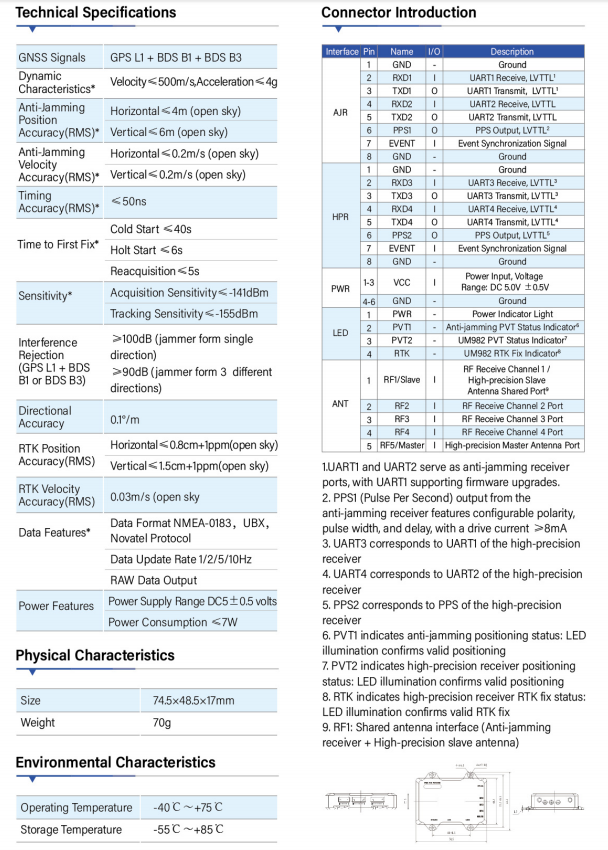

The ZYL105 is a compact and high-performance RTK GNSS antenna designed for precision positioning and direction finding in dynamic environments. Built with 2–4 CRPA elements and advanced null-steering technology, it delivers exceptional interference rejection of up to 100 dB for single jammers and 90 dB for multi-directional interference. Supporting GPS L1 + BDS B1 + BDS B3 signals, RX105 ensures robust positioning accuracy—horizontal < 0.8 cm + 1 ppm and vertical < 1.5 cm + 1 ppm in open-sky conditions. Weighing just 70 g with a 74.5 × 48.5 × 17 mm form factor, it provides IP65-rated durability, –40 °C to +75 °C operating range, and low power consumption (< 7 W). Ideal for UAVs, aircraft, and autonomous vehicles, ZYL105 guarantees reliable RTK navigation and anti-jamming protection for mission-critical operations.
