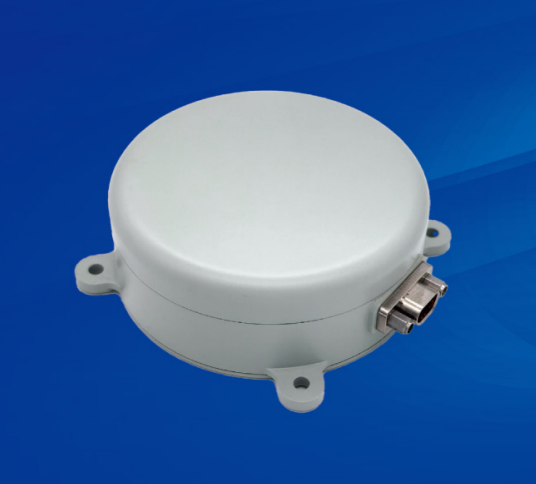

Ultra-Compact Anti-Jamming Receiver ZYL107

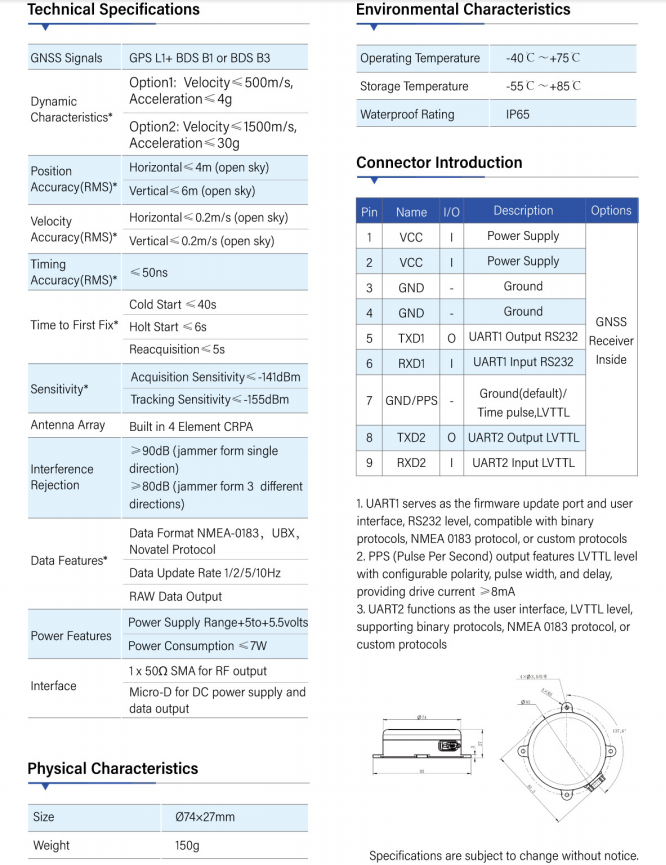

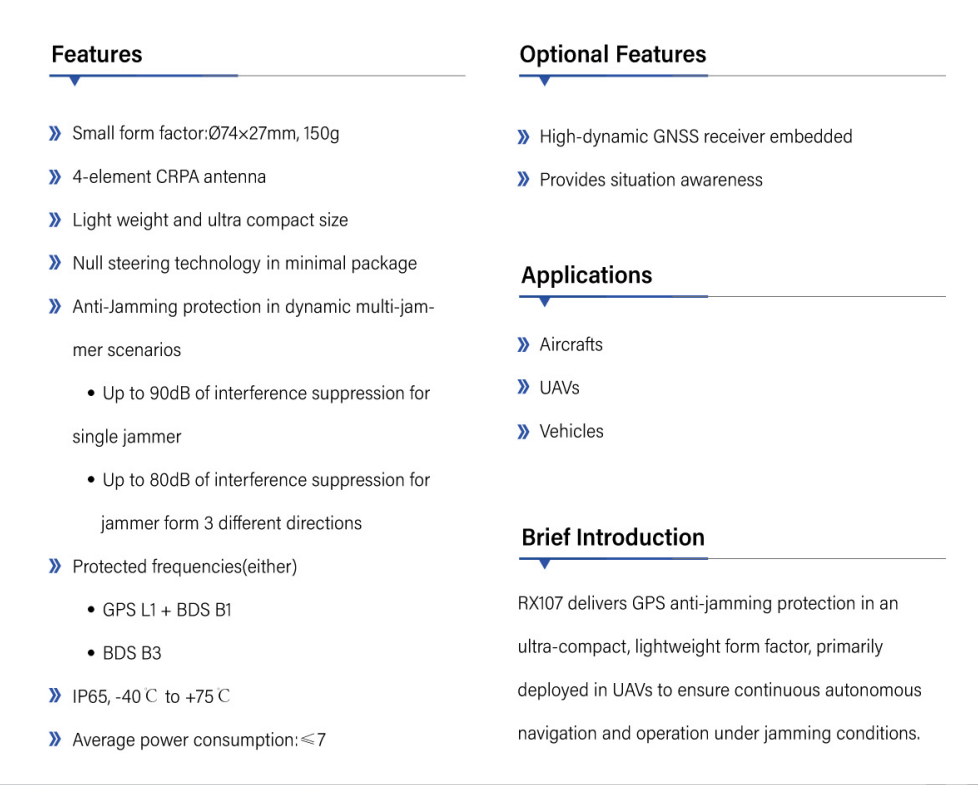

The ZYL107 is an ultra-compact, lightweight anti-jamming GNSS antenna built for reliable navigation and positioning under harsh interference environments. With a 74×27 mm form factor and only 150 g in weight, it integrates a 4-element CRPA array featuring advanced null-steering technology, providing up to 90 dB interference suppression for single jammers and 80 dB for multiple directional threats. Supporting GPS L1 + BDS B1 or BDS B3 signals, RX107 ensures high-accuracy positioning and strong anti-jamming protection for UAVs, aircraft, and unmanned vehicles. Designed to operate from –40 °C to +75 °C with IP65-level durability and power consumption below 7 W, ZYL107 delivers consistent, secure, and efficient GNSS navigation ideal for autonomous and mission-critical applications.
